The main technical parameters and structure

1. Model SZLH25
2. Die speed 388rpm
3. Production capacity 1000-2000kg/h
4. Supporting power 22kw
5. Particle diameter φ1.5~φ8mm
6. Dimensions 1300 × 650 × 1300 (length × width × height)
7. 2, the main structure and role

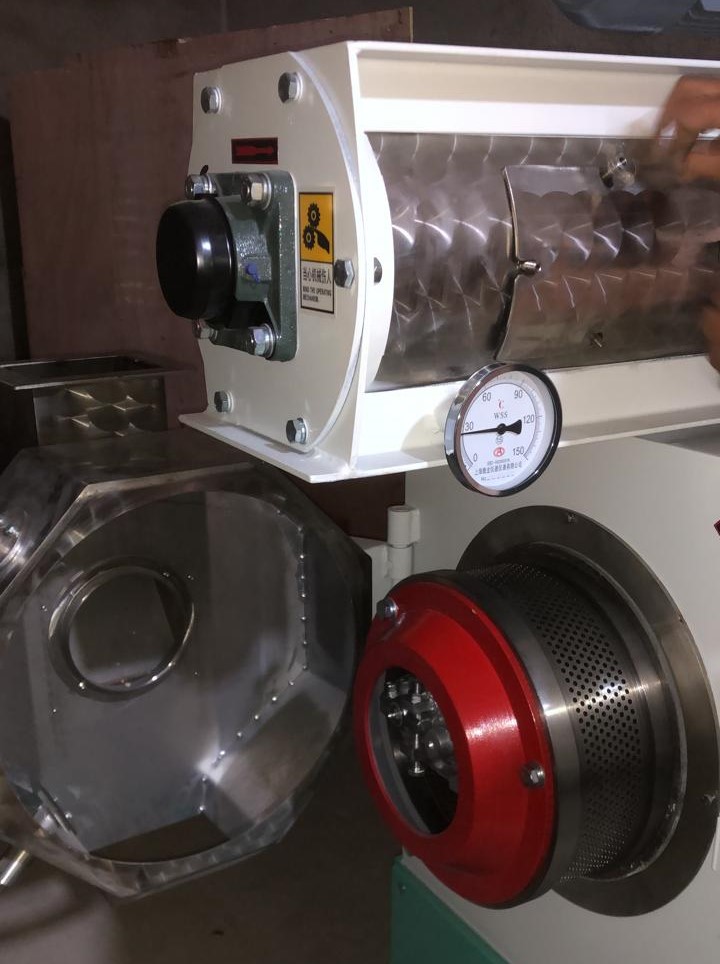

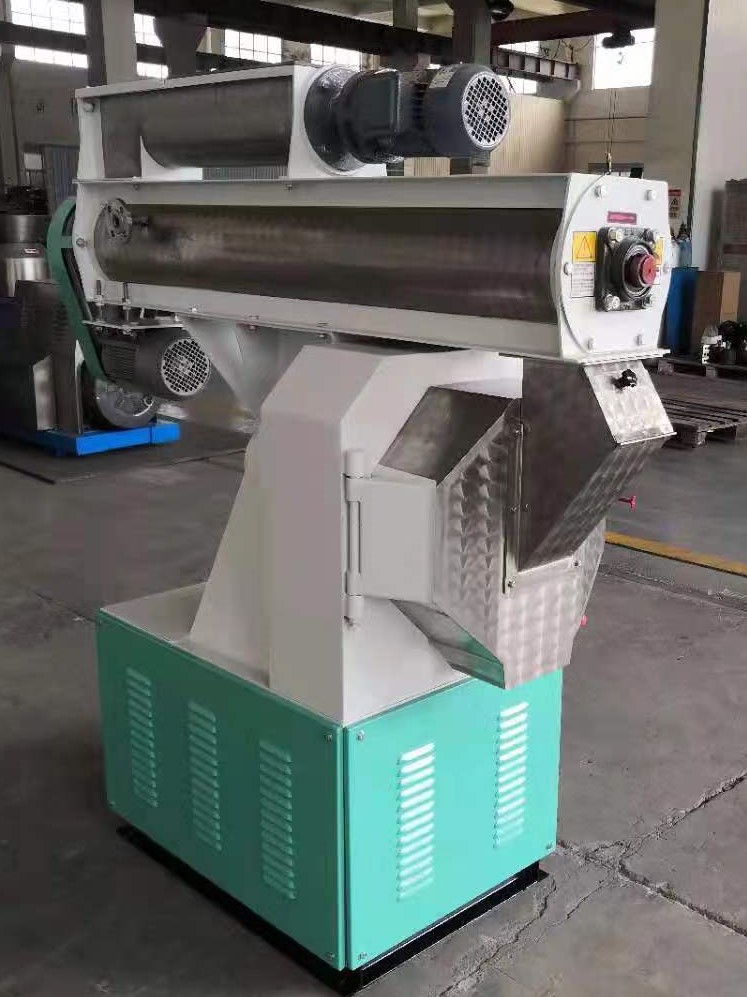

8. The machine is mainly composed of a frame, a belt drive system, a press roll assembly and
9. the like, as shown in Figure


   1, working principle

   The powder is fed into the rotating feed basin through the feed port. Due to the centrifugal

   force, the material is continuously smashed onto the inner wall of the stamper to form a uniform

   annular layer, and the annular layer is brought into the contact surface between the stamper and

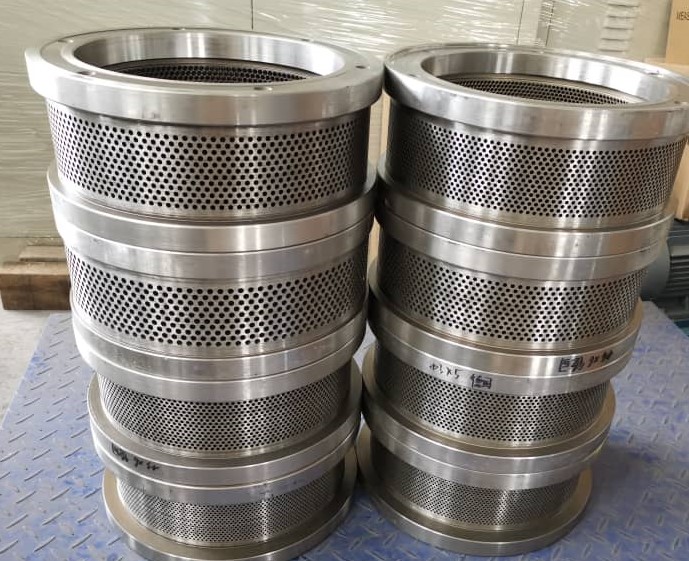

   the press roll is extruded from the die hole by a strong extrusion of a stamper and a press roll, and

   the cutter on the fixed cover is cut into a pellet feed having a uniform .
